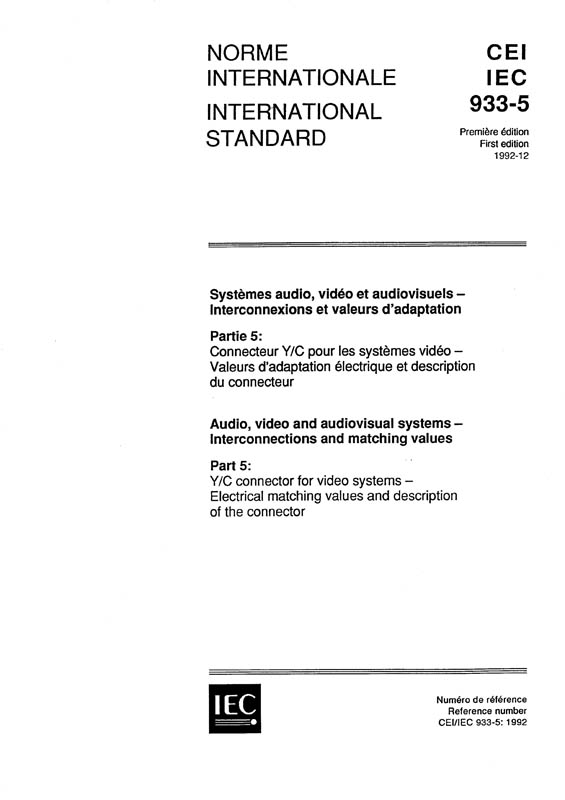

IEC 60933-5:1992
Audio, video and audiovisual systems - Interconnections and matching values - Part 5: Y/C connector for video systems - Electrical matching values and description of the connector
Ausgabedatum:
1992-11
Edition:
1.0
Sprache: EN-FR - zweisprachig englisch/französisch
Seitenzahl: 11 VDE-Artnr.: 205052
Applies to the transfer of video signals between two pieces of equipment in an NTSC, PAL or SECAM high-resolution video system, in the form of a Y-signal, consisting of luminance + blanking + sync, and a C-signal, the same as the modulated chrominance signal of the composite video signal. It specifies the signal levels and impedances at the interface and the type of connector to be used.
