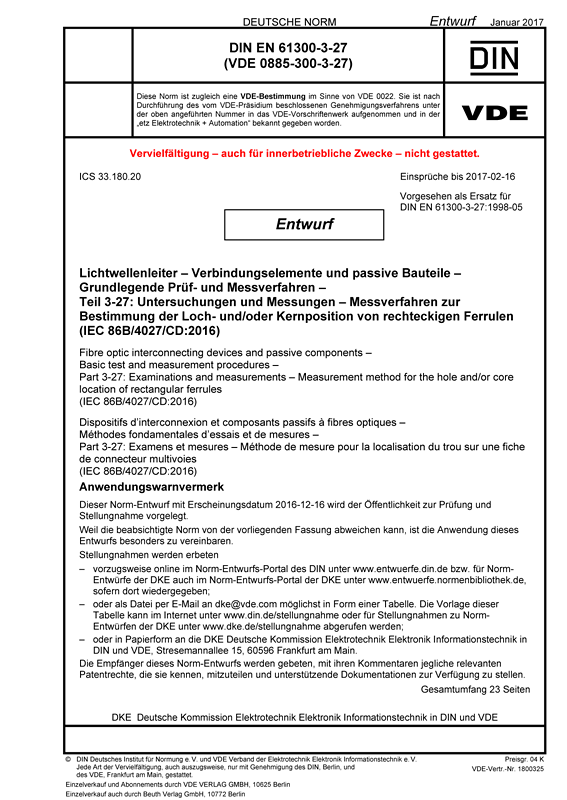

E DIN EN 61300-3-27 VDE 0885-300-3-27:2017-01

Fibre optic interconnecting devices and passive components – Basic test and measurement procedures

Part 3-27: Examinations and measurements – Measurement method for the hole and/or core location of rectangular ferrules

(IEC 86B/4027/CD:2016)
Class/Status: Draft, valid
Released: 2017 -01 Published: 2016-12 -16
VDE Art. No.: 1800325
End of objection deadline: 2017-02-16

This part of IEC 61300 specifies the method of following measurement :
- The hole location of a rectangular ferrule which has multiple fibre holes for arraying fibres and two guide holes for positioning two alignment pins;
- the fibre-core location of a rectangular connector plug with optical fibres installed.
This method is applied for MT type connector ferrule and MT type connector plug.
