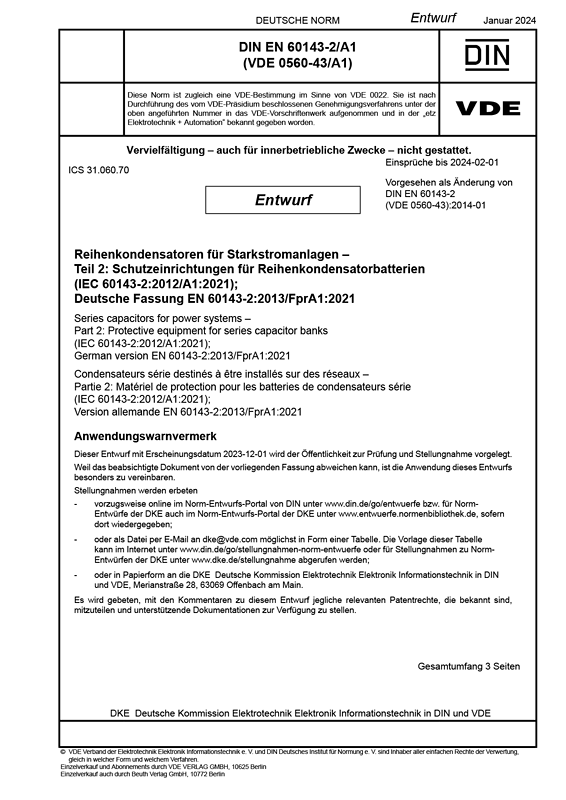

E DIN EN 60143-2/A1 VDE 0560-43/A1:2024-01

Series capacitors for power systems

Part 2: Protective equipment for series capacitor banks

(IEC 60143-2:2012/A1:2021); German version EN 60143-2:2013/FprA1:2021
Class/Status: Draft, valid
Released: 2024 -01 Published: 2023-12 -01
VDE Art. No.: 1500237
End of objection deadline: 2024-02-01

This part of IEC 60143 covers protective equipment for series capacitor banks, with a size larger than 10 Mvar per phase. Protective equipment is defined as the main circuit apparatus and ancillary equipment, which are part of a series capacitor installation, but which are external to the capacitor part itself. The recommendations for the capacitor part are given in IEC 60143-1:2004. The protective equipment is mentioned in Clause 3 and 10.6 of IEC 60143-1:2004.
