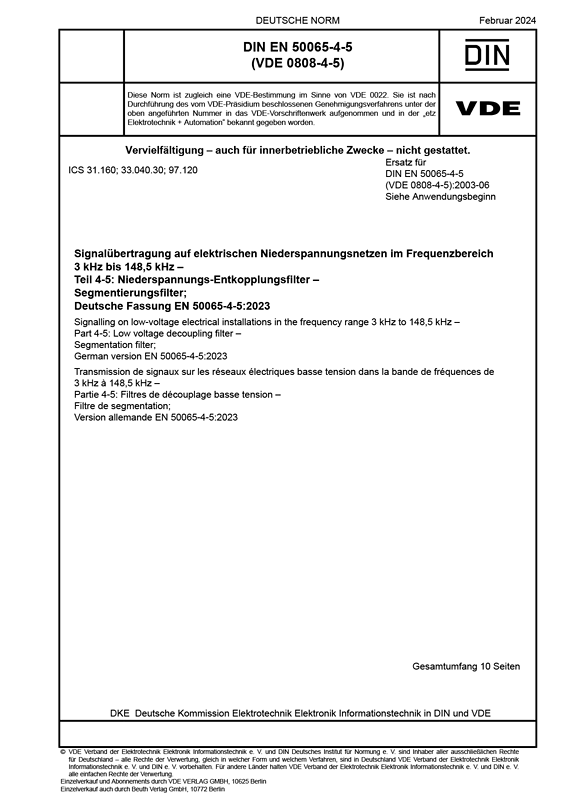

Cover DIN EN 50065-4-5 VDE 0808-4-5:2024-02
larger

DIN EN 50065-4-5 VDE 0808-4-5:2024-02

Signalling on low-voltage electrical installations in the frequency range 3 kHz to 148,5 kHz

Part 4-5: Low voltage decoupling filter – Segmentation filter;

German version EN 50065-4-5:2023
Class/Status: Standard, valid
Released: 2024-02
VDE Art. No.: 0800940

This document applies to segmentation filters in a mains communication system, intended for utility networks or household and similar fixed installation including residential, commercial and light industrial buildings. These filters are used to control the coupling of signals between two areas of a mains communications system as illustrated in Figure 1.
This document defines in the relevant frequency range:
- the minimum impedance a both ports of the filter,
- the minimum attenuation of signals transmitted between the ports of the filter.
