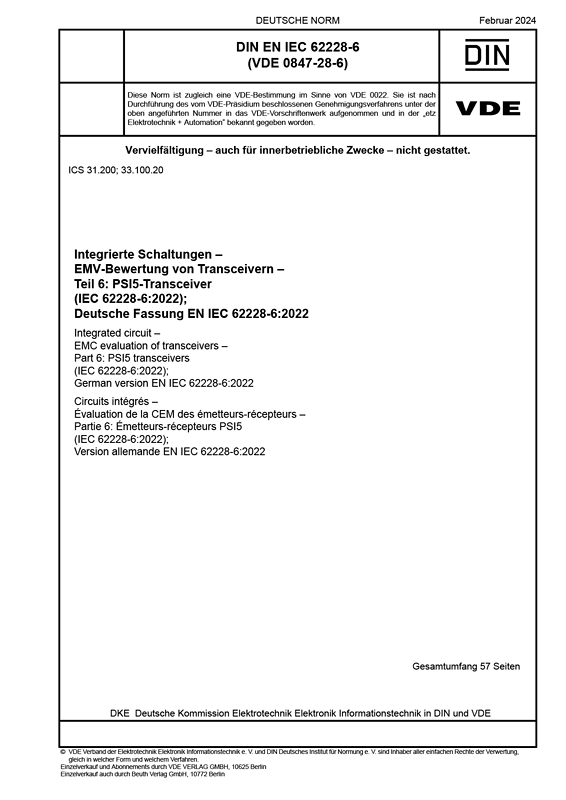

DIN EN IEC 62228-6 VDE 0847-28-6:2024-02

Integrated circuit – EMC evaluation of transceivers

Part 6: PSI5 transceivers

(IEC 62228-6:2022); German version EN IEC 62228-6:2022
Class/Status: Standard, valid
Released: 2024-02
VDE Art. No.: 0800927

110.24 € Print (German Version)

Add to Cart

203.56 € Engl. Version/PDF

Add to Cart

VDE Standards Search

This document specifies test and measurement methods for EMC evaluation of Peripheral Sensor Interface (PSI5) transceiver integrated circuits (ICs) under network condition. It defines test configurations, test conditions, test signals, failure criteria, test procedures, test setups and test boards. It is applicable for PSI5 satellite ICs (e.g. sensors) and ICs with embedded PSI5 transceivers (e.g. PSI5 Electronic control unit IC).
