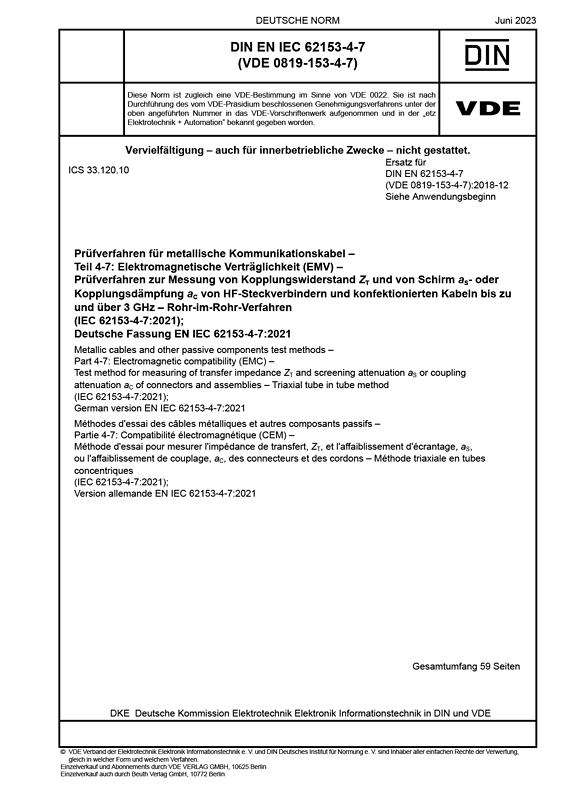

Cover DIN EN IEC 62153-4-7 VDE 0819-153-4-7:2023-06
larger

DIN EN IEC 62153-4-7 VDE 0819-153-4-7:2023-06

Metallic cables and other passive components test methods

Part 4-7: Electromagnetic compatibility (EMC) – Test method for measuring of transfer impedance ZT and screening attenuation aS or coupling attenuation aC of connectors and assemblies – Triaxial tube in tube method

(IEC 62153-4-7:2021); German version EN IEC 62153-4-7:2021
Class/Status: Standard, valid
Released: 2023-06
VDE Art. No.: 0800864

This part of IEC 62153 deals with the triaxial tube in tube method. This triaxial method is suitable to determine the surface transfer impedance and/or screening attenuation and coupling attenuation of mated screened connectors (including the connection between cable and connector) and cable assemblies. This method could also be extended to determine the transfer impedance, coupling or screening attenuation of balanced or multipin connectors and multicore cable assemblies. For the measurement of transfer impedance and screening- or coupling attenuation, only one test set-up is needed.
