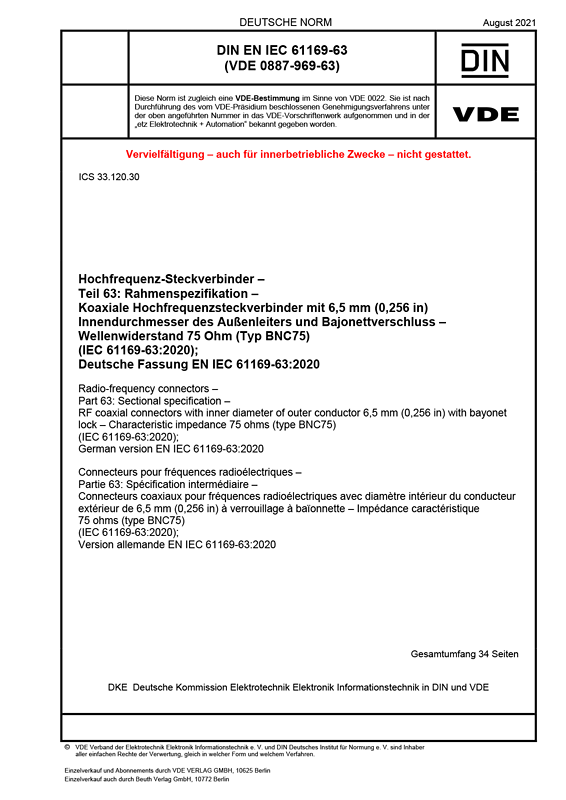

DIN EN IEC 61169-63 VDE 0887-969-63:2021-08

Radio-frequency connectors

Part 63: Sectional specification – RF coaxial connectors with inner diameter of outer conductor 6,5 mm (0,256 in) with bayonet lock – Characteristic impedance 75 ohms (type BNC75)

(IEC 61169-63:2020); German version EN IEC 61169-63:2020
Class/Status: Standard, valid
Released: 2021-08
VDE Art. No.: 0800727

This part of IEC 61169, which is a sectional specification (SS), provides information and rules for the preparation of detail specifications (DS) for RF coaxial connectors which may preferably be used with RF cables 60096 IEC 50-3 of IEC 60096-2. These connector patterns are for low power, quick connect/disconnect applications using a bayonet type coupling mechanism and are commonly known as type "BNC".

This Document is related to the following Topics (in bold):

33	TELECOMMUNICATIONS. AUDIO AND VIDEO ENGINEERING
33.020	Telecommunications in general
33.040	Telecommunication systems
33.050	Telecommunication terminal equipment
33.060	Radiocommunications
33.070	Mobile services
33.100	Electromagnetic compatibility (EMC)
33.120	Components and accessories for telecommunications equipment
33.140	Special measuring equipment for use in telecommunications
33.160	Audio, video and audiovisual engineering
33.170	Television and radio broadcasting
33.180	Fibre optic communications
33.200	Telecontrol. Telemetering
