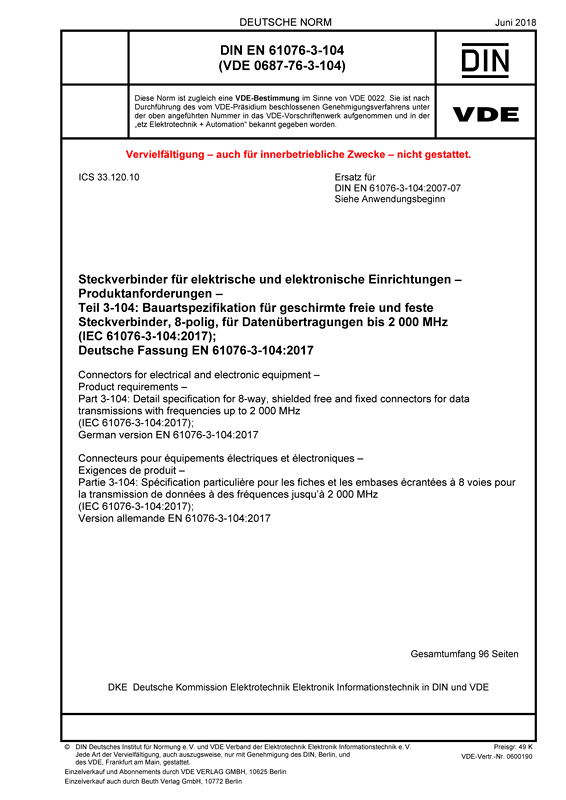

DIN EN 61076-3-104 VDE 0687-76-3-104:2018-06

Connectors for electrical and electronic equipment – Product requirements

Part 3-104: Detail specification for 8-way, shielded free and fixed connectors for data transmissions with frequencies up to 2 000 MHz

(IEC 61076-3-104:2017); German version EN 61076-3-104:2017
Class/Status: Standard, valid
Released: 2018-06
VDE Art. No.: 0600190

Contents (only German)

153.92 € Print (German Version)

Add to Cart

VDE Standards Search

This part of IEC 61076 establishes uniform specifications, type testing requirements and quality assessment procedures for 8-way, shielded free and fixed connectors for data transmissions with frequencies up to 2 000 MHz, and intended to be used within cabling for information and
communications technology, home entertainment and multimedia. It contains a choice of all test methods and sequences, severity and preferred values for dimensions and characteristics.
