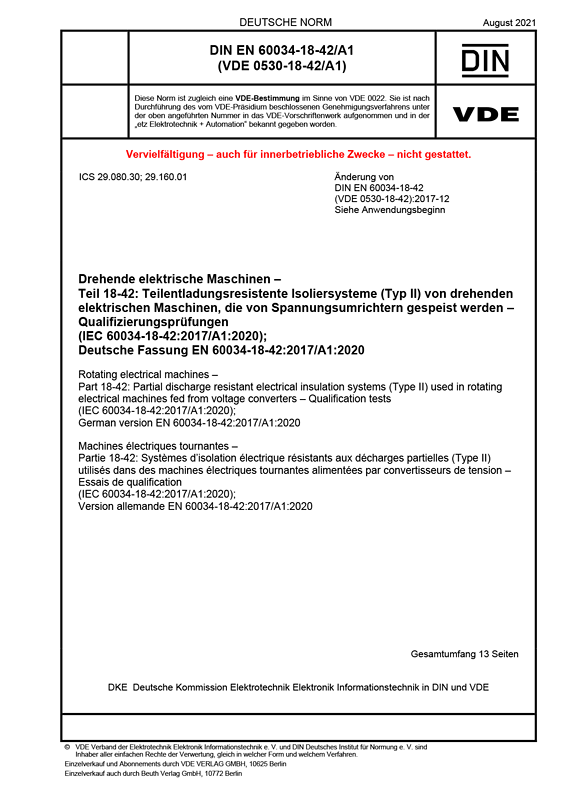

Part 18-42: Partial discharge resistant electrical insulation systems (Type II) used in rotating electrical machines fed from voltage converters – Qualification tests
(IEC 60034-18-42:2017/A1:2020); German version EN 60034-18-42:2017/A1:2020 Class/Status:
Standard,
valid
Released: 2021-08
VDE Art. No.: 0500202
This part of VDE 0530-18 defines criteria for assessing the insulation system of stator/rotor windings of single or polyphase AC machines which are subjected to repetitive impulse voltages, such as pulse width modulation (PWM) converters, and expected to withstand partial discharge activity during service. It specifies electrical qualification and acceptance tests on representative samples which verify fitness for operation with voltage-source converters.
This Document is related to the following Topics (in bold):
Erläuterungen zu den Normenreihen • für Explosionsschutz: DIN EN 60079 (VDE 0165 und VDE 0170/0171) DIN EN 61241 (VDE 0165) • für drehende elektrische Maschinen: DIN EN 60034 (VDE 0530) • für drehzahlveränderbare elektrische Antriebe: DIN EN 61800 (VDE 0160) • entsprechenden IEC-Normen • EU-Richtlinien (ATEX) sowie weiteren Normen, Vorschriften und Standards mit Hinweisen für die technisch-wirtschaftliche Antriebsoptimierung VDE-Schriftenreihe – Normen verständlich, Band 64
2014, 240 pages, Din A5, Broschur
Dieser Buchtitel ist auch als E-Book (PDF) erhältlich
