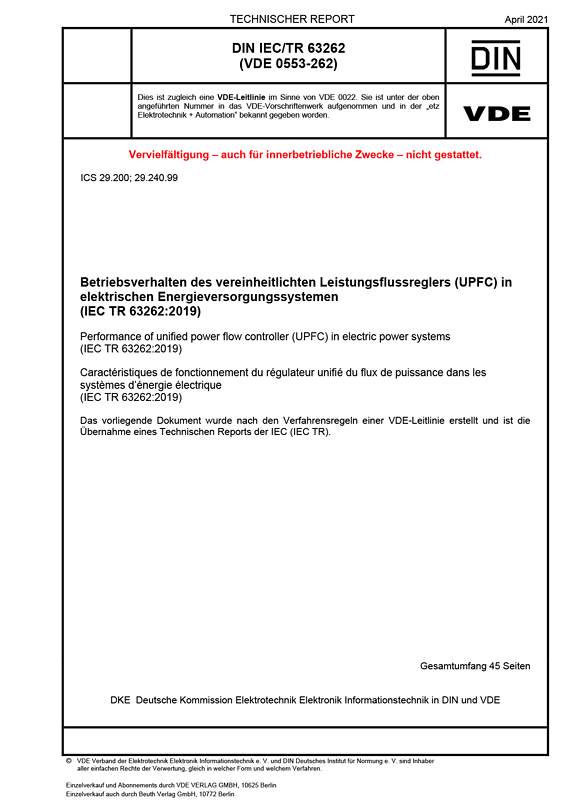

DIN IEC/TR 63262 VDE 0553-262:2021-04

Performance of unified power flow controller (UPFC) in electric power systems

(IEC TR 63262:2019)
Class/Status: Standard, valid
Released: 2021-04
VDE Art. No.: 0500189

This document provides guidelines for applying unified power flow controllers (UPFC) in power systems. It includes letter symbols, terms and definitions, principles and configurations, design rules, performance requirements for key equipment, control and protection, insulation co-ordination, system performance and tests. This technical report applies to the UPFC based on modular multi-level converter (MMC) technology, as well as UPFC based on three-level converter technology.
