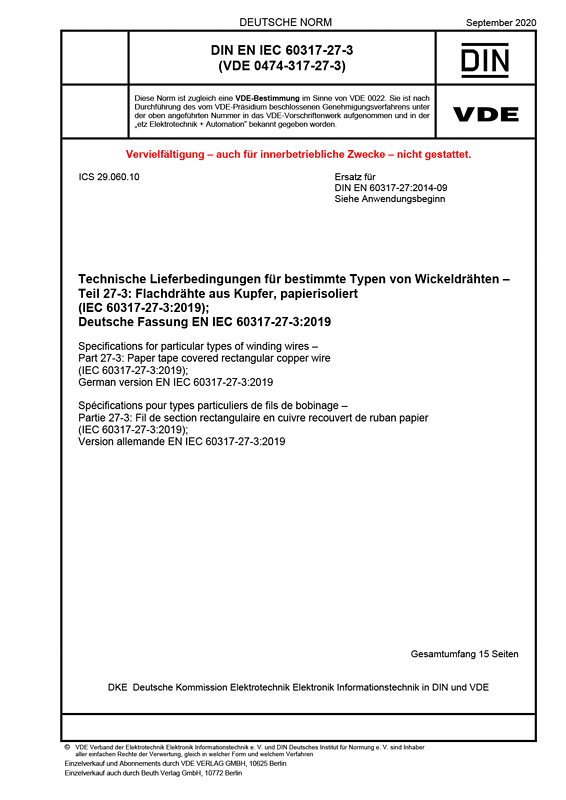

DIN EN IEC 60317-27-3 VDE 0474-317-27-3:2020-09

Specifications for particular types of winding wires

Part 27-3: Paper tape covered rectangular copper wire

(IEC 60317-27-3:2019); German version EN IEC 60317-27-3:2019
Class/Status: Standard, valid
Released: 2020-09
VDE Art. No.: 0400410

This part of IEC 60317 specifies the requirements of paper tape covered rectangular copper winding wires. This covering consists of two or more layers of paper tape, all in the same direction and is primarily intended for winding coils for oil immersed transformers.
The range of nominal conductor dimensions covered by this standard is:
- width: min. 2,0 mm, max. 16,0 mm;
- thickness: min. 0,80 mm, max. 5,60 mm.
The paper tapes covered by this standard are restricted to those specified in IEC 60554-1 having thicknesses in the range 25 µm to 125 µm inclusive.
