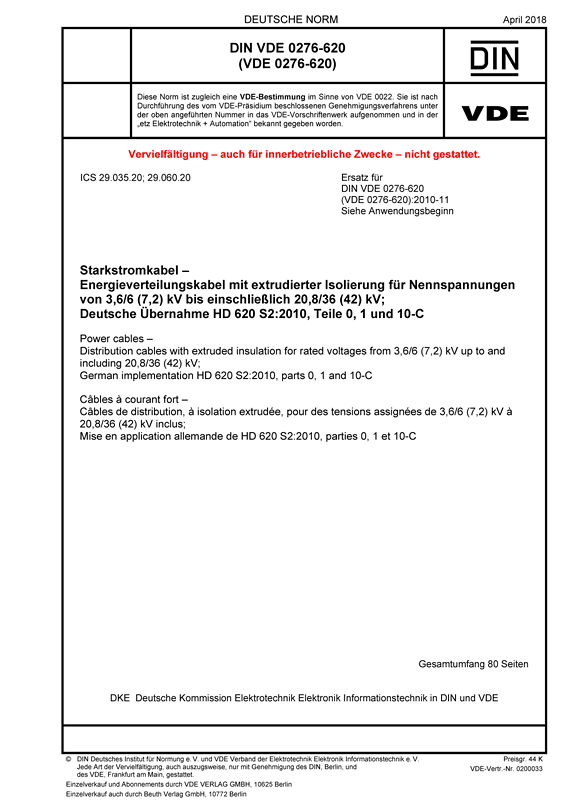

Cover DIN VDE 0276-620 VDE 0276-620:2018-04
larger

DIN VDE 0276-620 VDE 0276-620:2018-04

Power cables

Distribution cables with extruded insulation for rated voltages from 3,6/6 (7,2) kV up to and including 20,8/36 (42) kV;

German implementation HD 620 S2:2010, parts 0, 1 and 10-C
Class/Status: Standard, withdrawn
Released: 2018-04
VDE Art. No.: 0200033

Contents (only German)

This standard consists HD 620 S2 and applies to cables with extruded insulation used in power distribution systems.
Part 1 specifies the general requirements applicable to these cables, unless otherwise specified in the particular sections of this HD.
Part 10-C specifies the construction, dimensions and test requirements of single-core power cables with XLPE-insulation and with PE-sheath or PVC-sheath for rated voltage of 6/10 kV, 12/20 kV and 18/30 kV and of three-core power cables with XLPE-insulation and with PE-sheath or PVC-sheath for rated voltage of 6/10 kV for fixed installations.

Standard:

NEW DIN VDE 0276-620 VDE 0276-620:2024-12

Distribution cables with extruded insulation for rated voltages from 3,6/6 (7,2) kV up to and including 20,8/36 (42) kV;

» More Information
145.75 €
